MOORGATE ACADEMY USES MIKROFILL

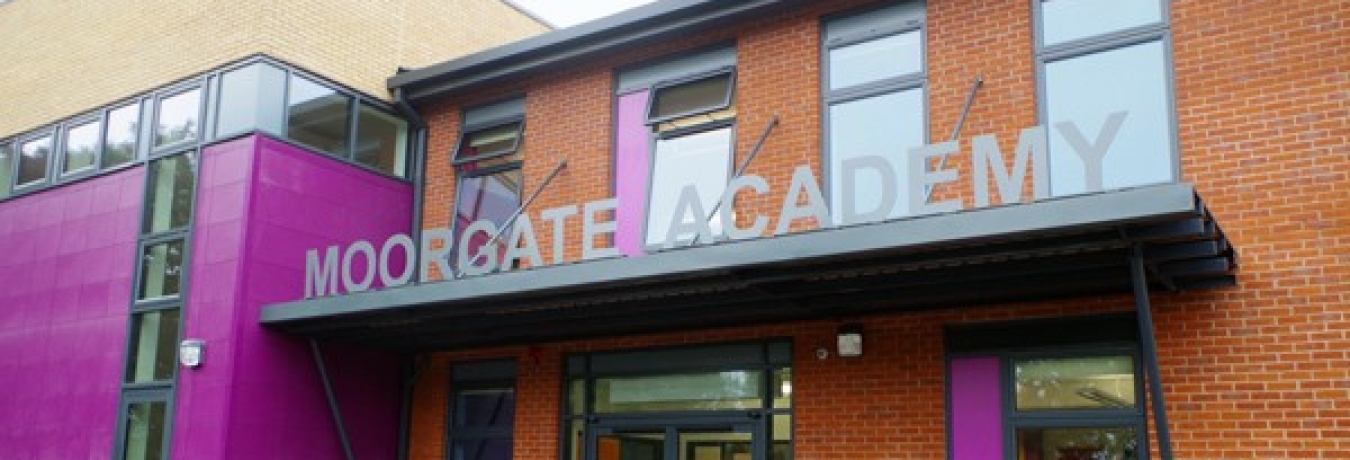

The recently completed “Moorgate Primary Academy” in Tamworth prides itself on being a very friendly school with caring and supportive staff. The academy’s vision is simple; achieve, challenge, enjoy! Moorgate delivers this aim by providing a safe, secure and nurturing environment for children to develop into learners for life.

Constructed by Interserve, the build comprises state of the art classrooms, dance studios, library and a “breakout space” for group activities.

RPS (B/ham) carried out the mechanical design that included 3 No Ethos 110kW condensing boilers c/w a “Mikrovent 250” low loss header & air dirt separator. With a combined modulation of 30 > 1 across 330kW the stainless steel boilers ensure optimum load matching at all times. The HWS demand was catered for by the introduction of 3 “Extreme” loading cylinders. The stainless steel generators operate on a primary ∆t of 30⁰C to maximise the condensing boilers efficiency. Each unvented cylinder is set to produce in excess of 2000 l/hr and over 600 litres over a 10 minute peak period
